How to Inspect and Replace Exterior Door Weatherstripping

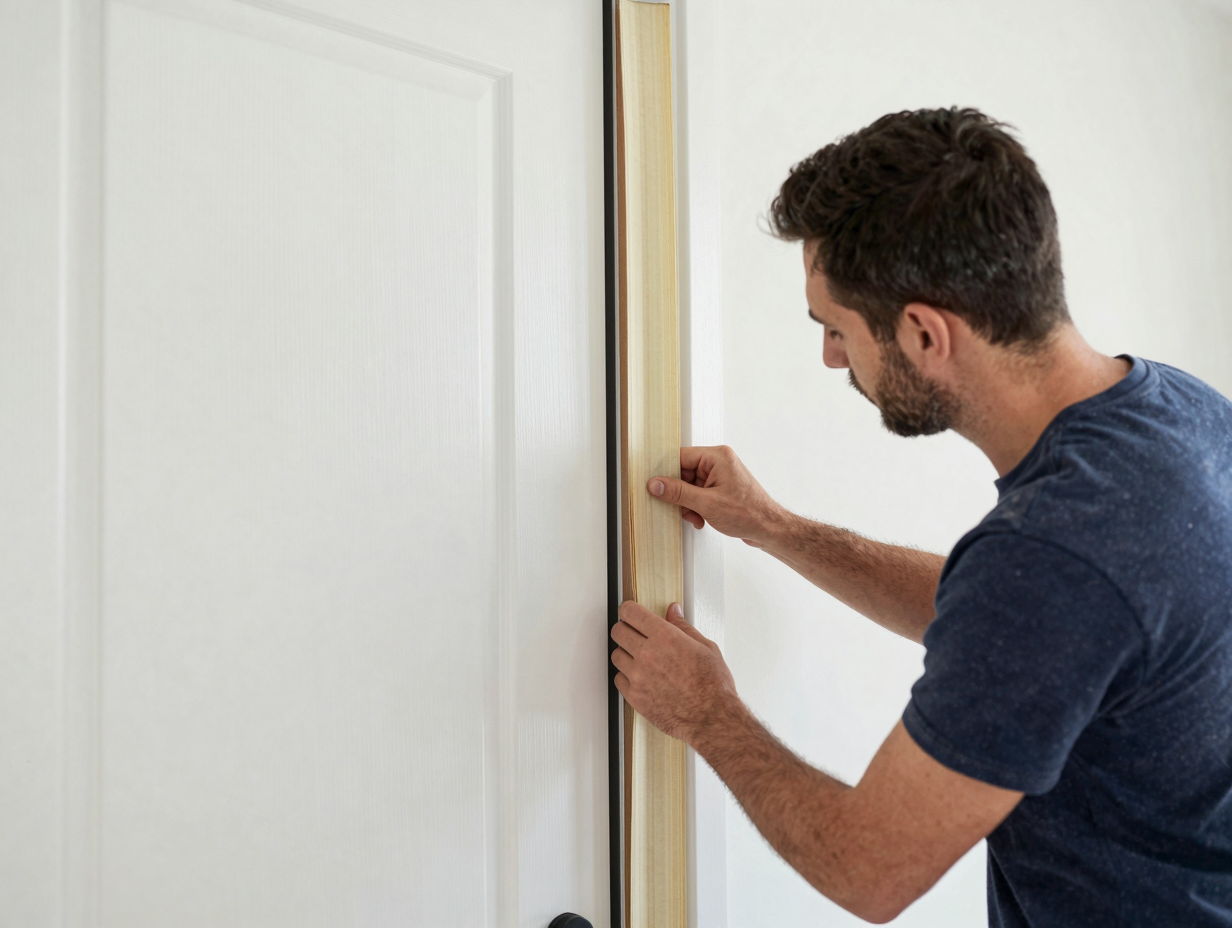

Homeowner inspecting weatherstripping around a closed exterior door

Quick answer: Worn exterior-door weatherstripping should be diagnosed before it is replaced. Start with a closed-door light or paper test, check that the door is aligned and latches normally, identify the existing seal type, and then replace damaged material with a compatible weatherstrip that makes continuous contact without making the door difficult to operate.

Table of Contents

Why Exterior Door Weatherstripping Matters
How to Tell Whether Your Door Is Actually Leaking
Inspect the Weatherstrip, Sweep, and Door Before Buying Parts
Check Door Alignment Before Adding a Thicker Seal
Identify the Existing Weatherstrip Type
Choose a Compatible Replacement Instead of the Thickest One
Step-by-Step: Replace Worn Exterior Door Weatherstripping
A Practical Post-Installation Checklist
Common Weatherstripping Mistakes
When the Problem Is Bigger Than Weatherstripping
Energy Savings: What You Can and Cannot Claim
FAQ
Key Takeaways
Sources

Weatherstripping is one part of a home's air-sealing system. The U.S. Department of Energy (DOE) and ENERGY STAR both identify sealing leaks around doors and other openings as a practical way to reduce unwanted air movement, but there is no verified universal percentage or dollar savings for replacing the weatherstripping on a single exterior door.

Why Exterior Door Weatherstripping Matters

An exterior door has to move freely while also sealing against its frame when closed. Weatherstripping provides that flexible seal along the sides and top, while a door sweep or door-bottom system helps control leakage at the threshold.

As of September 25, 2026, DOE guidance treats weatherstripping as part of broader air-sealing work. DOE describes potential annual energy savings from reducing drafts throughout a home in a broad 5% to 30% range. ENERGY STAR states that air sealing combined with insulation can reduce annual energy costs by up to about 10%. Neither figure should be interpreted as the savings from replacing weatherstripping on one door.

The practical reason to repair a worn seal is simpler: conditioned indoor air should not freely leak through unintended gaps around a closed exterior door. A sound seal can also make rooms near the entrance feel less drafty.

If drafts seem to come from several doors, windows, or other parts of the building envelope, a broader assessment may be more useful than repeatedly replacing individual seals. what to expect during a home energy audit explains how a professional assessment can investigate leakage beyond a single door.

How to Tell Whether Your Door Is Actually Leaking

Do not assume that a draft automatically means the weatherstrip needs replacement. First identify where air is entering and whether the problem is the seal, the door's alignment, the bottom sweep, or a gap around the frame.

1. Look for light around the closed door

Close and latch the door, then inspect the edges that should be sealed. ENERGY STAR notes that visible light through a supposedly sealed edge can indicate an air leak. Its DIY guidance also describes having one person shine a flashlight from one side while another checks the opposite side.

Check the top corners carefully. A weatherstrip can look acceptable along most of its length yet leave a gap where two pieces meet.

2. Use the ENERGY STAR paper test

Place a piece of paper between the door and the frame, then close and latch the door. Pull on the paper. ENERGY STAR advises that if the paper slides out without tearing, that location can indicate leakage.

Repeat the test at several locations rather than testing only one spot. Compare the latch side, hinge side, top, and corners. Uneven resistance can reveal a localized gap or an alignment problem.

3. Check for drafts by hand

ENERGY STAR also describes using a damp hand to help locate leakage. Moving air can feel cool against damp skin. This is useful as a quick screening method, although it does not measure the amount of leakage.

4. Treat smoke testing as a controlled test

DOE and ENERGY STAR describe smoke from incense as another way to locate moving air, but this should not be reduced to simply holding a flame near the door. ENERGY STAR's procedure includes safety preparations involving combustion appliances, closed exterior openings and fireplace flues, and exhaust fans.

If you are not comfortable following the complete safety procedure, use the paper and light tests instead. Professional weatherization work can use smoke together with blower-door testing for a more systematic assessment.

Close-up of worn weatherstripping and a gap along an exterior door jamb

Inspect the Weatherstrip, Sweep, and Door Before Buying Parts

Once you confirm leakage, inspect the existing components. Different materials fail in different ways, and replacing the seal without checking the door itself can leave the original problem unresolved.

What to inspect	What to look for	What it may mean
Adhesive foam	Edges lifting, poor adhesion, material that no longer returns to shape	The strip may no longer maintain reliable contact
Rubber or vinyl	Cracking or dryness	Replacement may be appropriate where sealing performance has deteriorated
Metal-type weatherstrip	Bending, warping, cracking, or loose sections	The profile may no longer meet the door correctly
Door sweep or bottom	Visible gap, damage, or poor contact with the threshold	Air may be entering below the door
Door operation	Rubbing, uneven latch engagement, movement against the stop when latched	Alignment or hardware may need attention before weatherstripping

Plastpro's inspection guidance identifies loss of adhesion and failure to recover shape in adhesive foam, cracking or dryness in rubber and vinyl, and bending, warping, cracking, or looseness in metal products as signs worth investigating.

There is no verified universal replacement interval that applies to every exterior-door weatherstrip. Exposure, material, door usage, installation method, and door design differ, so actual condition and sealing performance are more useful than replacing a strip simply because it has reached a certain age.

Check Door Alignment Before Adding a Thicker Seal

This is one of the most easily missed steps. DOE weatherization guidance calls for evaluating the door's fit and operation before weatherstripping and making necessary adjustments so the completed seal does not interfere with normal operation.

Open and close the door slowly. Look for rubbing against the jamb, uneven gaps, difficulty latching, or movement between the closed door and its stop. Check whether hinge hardware appears loose and whether the latch meets the strike consistently.

A sagging or poorly aligned door should not simply be forced against a thicker compression seal. DOE guidance indicates that hinge hardware, alignment, and strike-related adjustments may need to be addressed first. The completed door should not require excessive force to close.

Useful rule: Weatherstripping should seal a properly operating door. It should not be used to hide a door-fit problem.

Identify the Existing Weatherstrip Type

Before removing anything, determine how the existing seal is mounted. A replacement that resembles the old material is not necessarily compatible with the jamb.

Kerf-mounted seals

A kerf is a narrow groove in the door jamb designed to accept a matching weatherstrip profile. Therma-Tru's replacement procedure describes pulling the existing weatherstrip from the jamb, pressing the flat edge of the replacement into the groove, and cutting it to length.

Frost King likewise identifies kerf seals as replacement products installed in an existing jamb kerf. If your door already uses this system, look first for a compatible replacement rather than covering the groove with generic adhesive foam. Door-manufacturer instructions should take priority because door systems can use different profiles and dimensions.

Adhesive-backed weatherstripping

Adhesive-backed material depends heavily on surface preparation. U.S. government weatherization criteria call for removing old weatherstripping, dirt, loose paint, and other material that prevents a smooth mounting surface. Adhesive-backed products should be installed on a clean, dry surface.

Compression seals

Compression weatherstripping seals as the closed door presses against it. More compression is not automatically better. HUD guidance notes that an incorrectly sized resilient material can prevent a door from closing properly or interfere with hardware, so follow the product manufacturer's sizing recommendations.

Door sweeps and door bottoms

The bottom of the door requires separate attention. Frost King advises checking the sweep when a draft is noticeable near the floor and describes a properly positioned sweep as lightly contacting the threshold without interfering with opening and closing.

Sweep location can depend on the door's swing and product design. Frost King gives a general approach of installing a sweep on the inside of many inward-swinging entry doors and on the outside of an outward-swinging door, but door-bottom and sweep designs vary. Follow the instructions for your particular door and product.

Choose a Compatible Replacement Instead of the Thickest One

The goal is continuous contact with slight compression when the door is closed. Government weatherization criteria specify that joints should be continuous, corners should fit tightly, and the material should be slightly compressed in the closed position.

That means shopping by thickness alone is a mistake. First match the mounting method and profile. Then make sure the replacement can seal the actual gap without preventing the door from closing and latching normally.

Existing kerf in the jamb: Check for a compatible kerf-mounted replacement and consult the door manufacturer's instructions.
Adhesive-backed system: Choose a product intended for the location and apply it only to a suitable clean, dry mounting surface.
Compression-style system: Follow the manufacturer's sizing guidance rather than assuming a thicker gasket seals better.
Leak at the threshold: Inspect the sweep or door-bottom system instead of trying to solve the bottom gap with jamb weatherstripping.
Unusual or proprietary door system: Check the door manufacturer's replacement instructions before modifying the original sealing arrangement.

Step-by-Step: Replace Worn Exterior Door Weatherstripping

The exact installation method varies by product, but the following workflow combines the principles found in DOE, ENERGY STAR, government weatherization criteria, and manufacturer instructions.

Step 1: Confirm the leak

Start with the paper, light, or draft inspection. Note the exact locations where the seal appears weak. This prevents unnecessary replacement of parts that are still working correctly.

Step 2: Diagnose door fit and operation

Open, close, and latch the door. Check for rubbing, sagging, uneven contact, or latch problems. Address appropriate alignment or hardware issues before trying to compensate with oversized weatherstripping.

Step 3: Identify the existing seal system

Determine whether the jamb uses a kerf-mounted seal, an adhesive-backed strip, a compression profile, or another manufacturer-specific design. Inspect the door bottom separately.

Step 4: Remove the worn material

Remove the existing strip without unnecessarily damaging the jamb or mounting surface. DOE weatherization guidance for replacement work calls for removal of the existing weatherstripping before the new material is installed.

With a kerf-mounted system, the old seal may pull directly out of the groove. For other systems, removal should follow the construction of the product and the door manufacturer's instructions.

Step 5: Prepare the mounting surface

Remove dirt, remnants of the old weatherstrip, loose paint, and other material that could prevent a smooth installation. For adhesive-backed products, the mounting surface must be clean and dry before installation.

Do not rush this step. Even a correctly selected adhesive strip cannot perform as intended if it is applied over a contaminated or damp surface.

Step 6: Measure and cut the compatible replacement

Measure the actual installation location and follow the replacement product's instructions. Do not rely on a universal trimming allowance or installation dimension because door systems differ.

For a kerf-mounted replacement, manufacturer guidance such as Therma-Tru's procedure calls for pressing the appropriate edge into the jamb groove and trimming the material to fit. Other systems can require different installation methods.

Step 7: Install continuously and fit the corners tightly

A good seal should not contain avoidable breaks along the weatherstripped joint. Government weatherization criteria call for continuous application and tight-fitting corners.

Watch the top corners as you work. Gaps, buckling, or poorly joined sections can create leakage even when the rest of the strip is correctly installed.

Step 8: Check contact and compression

Close the door gently. The weatherstrip should contact the mating surface and compress slightly. It should not require excessive force to overcome an oversized gasket.

If the door suddenly becomes difficult to close, do not assume that the tighter feel means better energy performance. Recheck product sizing, placement, door alignment, and manufacturer instructions.

Step 9: Inspect and adjust the bottom seal

Check the door sweep or bottom against the threshold. The objective is to control leakage without creating excessive drag or obstructing the door's movement.

A visible gap below the door should be diagnosed as a bottom-seal or threshold issue rather than automatically adding more material to the side jambs.

Step 10: Operate, latch, and retest

Open and close the door several times, then latch it normally. DOE's desired outcome for exterior-door weatherstripping is reduced air infiltration while maintaining or improving normal door operation.

Repeat the paper or light test at the locations you checked before the repair. If the door works normally and the previous leakage points now maintain contact, the repair has addressed the intended problem.

A Practical Post-Installation Checklist

Check	Good result	Warning sign
Door movement	Opens and closes normally	New rubbing or excessive resistance
Latch	Engages normally	Door must be forced shut
Weatherstrip	Continuous contact with slight compression	Buckling, gaps, or excessive crushing
Corners	Pieces meet tightly	Visible openings between sections
Door bottom	Sweep or bottom controls the gap without obstructing movement	Large gap or excessive drag
Paper/light retest	Previous leakage points show improved sealing	Paper remains loose or light remains visible

Common Weatherstripping Mistakes

Installing a thicker strip to compensate for a crooked door

This can create a new closing problem without correcting the underlying fit. Check hinges, alignment, latch engagement, and the door-to-stop relationship first.

Installing adhesive material over dirt or loose paint

Adhesive-backed weatherstripping needs an appropriate clean, dry surface. Remove loose material and remnants of the previous strip before applying the replacement.

Ignoring the threshold

A door can have an excellent seal along both sides and the top while still leaking substantially at the bottom. Always include the sweep, door bottom, and threshold in the inspection.

Assuming maximum compression is ideal

The target is slight compression with reliable contact, not the greatest possible pressure. An oversized compression material can interfere with closing or hardware operation.

Using one installation rule for every exterior door

Kerf seals, adhesive products, sweeps, slide-on bottoms, and manufacturer-specific systems are not interchangeable installation methods. Check the existing design before buying or cutting replacement material.

Assuming a new weatherstrip will solve every draft

Weatherstripping seals the moving joint between the door and its mating surfaces. Leakage can also occur around the door frame or rough opening. ENERGY STAR treats leakage around and behind trim as a separate air-sealing concern.

If the paper test looks good at the door joint but a draft persists around the frame, investigate the frame area rather than continually adding weatherstrip. DOE building-science guidance identifies appropriate air-sealing approaches for door and window rough openings and warns against relying on fibrous insulation alone as the air seal.

When the Problem Is Bigger Than Weatherstripping

Persistent leakage after a careful replacement is useful diagnostic information. It can point to a door that is out of alignment, a damaged threshold, a frame or rough-opening leak, or a sealing system that does not match the replacement material.

Structural deterioration, significant frame damage, or a door that cannot be aligned to operate and seal correctly may require repair beyond routine weatherstripping. Do not keep increasing gasket thickness to compensate for a physical problem with the door assembly.

If drafts appear throughout the house rather than at one entrance, consider evaluating the building envelope as a system. A professional home energy assessment can use diagnostic methods such as blower-door testing to identify leakage that a simple visual inspection may miss. professional home energy audit provides more context on what that process involves.

Before other maintenance work that involves household plumbing, it is also useful to know the location and operation of the home's main water shutoff. See how to find and test your main water shutoff for that separate home-maintenance task.

Energy Savings: What You Can and Cannot Claim

Replacing a leaking exterior-door seal is a legitimate air-sealing improvement, but its individual savings depend on the home, climate, leakage, HVAC operation, and other parts of the building envelope. The research used for this article does not establish a universal dollar amount or percentage reduction for one weatherstripped door.

As of September 25, 2026, DOE's broader discussion of reducing drafts gives a potential annual energy-savings range of 5% to 30% for whole-home draft reduction. ENERGY STAR states that sealing air leaks and adding insulation can save up to about 10% on annual energy costs. These figures cover broader efficiency work and should not be presented as guaranteed savings from this single repair.

A better way to judge a DIY weatherstripping project is by its direct outcome: the identified leakage point is better sealed, the strip makes appropriate contact, and the door continues to open, close, and latch normally.

FAQ

What is the easiest way to test exterior-door weatherstripping?

Use the ENERGY STAR paper test or check for visible light around the closed door. Place paper between the door and frame, close the door, and pull. Paper that comes out without tearing can indicate leakage at that location.

Should I replace weatherstripping on a fixed schedule?

No universal official replacement interval was confirmed for all exterior-door weatherstripping. Inspect the material and sealing performance instead, because wear depends on the product, exposure, installation, and how the door is used.

Should I buy the thickest weatherstrip that fits the gap?

No. Government and HUD guidance supports proper sizing and slight compression rather than maximum compression. A seal that is too large can make the door difficult to close or interfere with its hardware.

Do I need to replace the whole door if I feel a draft?

Not necessarily. DOE and ENERGY STAR guidance supports identifying leakage and addressing weatherstripping, sweeps, and other air-sealing issues where appropriate. Check door alignment and the source of the leak before assuming the complete door requires replacement.

What if new weatherstripping does not stop the draft?

Retest the door joint and inspect the sweep, threshold, alignment, corners, and frame area. Leakage around or behind the frame is different from leakage at the movable door joint and may require a different air-sealing approach.

Key Takeaways

Confirm the leak with a light, paper, or draft check before buying replacement weatherstripping.
Check door alignment, hinges, latch operation, and the door stop before trying to solve a fit problem with a thicker gasket.
Identify whether the existing seal is kerf-mounted, adhesive-backed, compression-style, or part of another door-specific system.
Remove worn material and prepare a clean, dry mounting surface when the replacement system requires it.
Install the seal continuously, fit corners tightly, and aim for contact with slight compression rather than excessive pressure.
Inspect the sweep or door bottom separately because leakage can occur below an otherwise well-sealed door.
After installation, make sure the door still opens, closes, and latches normally, then repeat the original leakage test.
Do not attribute whole-home energy-savings percentages to a single weatherstripping replacement.
